Flexible Arm Illuminated Magnifier – Standard Model

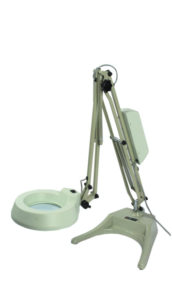

Flexible Arm Illuminated Magnifier Standard Model with Movable Base (L104St+L104B)

  • Strain free bi-ocular view for comfortable , long work hours
  • Aesthetically pleasing and lasting powder coat surface finishes for stand.
  • Robust and simple design that makes it simple to maintain.
  • Most popular and long running model. The oldest versions were introduced 20 years ago and have gone through numerous upgrades.

Description

Flexible Arm Illuminated Magnifier Standard Model with Movable Base (L104St+L104B)

  • Strain free bi-ocular view for comfortable , long work hours
  • Aesthetically pleasing and lasting powder coat surface finishes for stand.
  • Robust and simple design that makes it simple to maintain.
  • Most popular and long running model. The oldest versions were introduced 20 years ago and have gone through numerous upgrades.

Most popular ‘value for money’ model, available ex stock. Used in large numbers on manufacturing and assembly lines.

SPECIFICATIONS:

Lens:  Specially designed, distortion controlled high quality lens correctly sized for both eyed (bi-ocular) vision.

Clear diameter 130 mm, 3.2D lens. Provides about 4 times area magnification.

Working clearance below lens mount is 250 mm, and field seen can be up to 250 mm.

Illumination: 22 watt standard circular fluorescent light providing shadow free, bright illumination.

Stand: Highly optimized design , spring balance stand with feather-touch movement to place lens in the correct position and orientation. Lens center can reach out 900 mm in front of mount axis with up to  360 degrees swivel.
